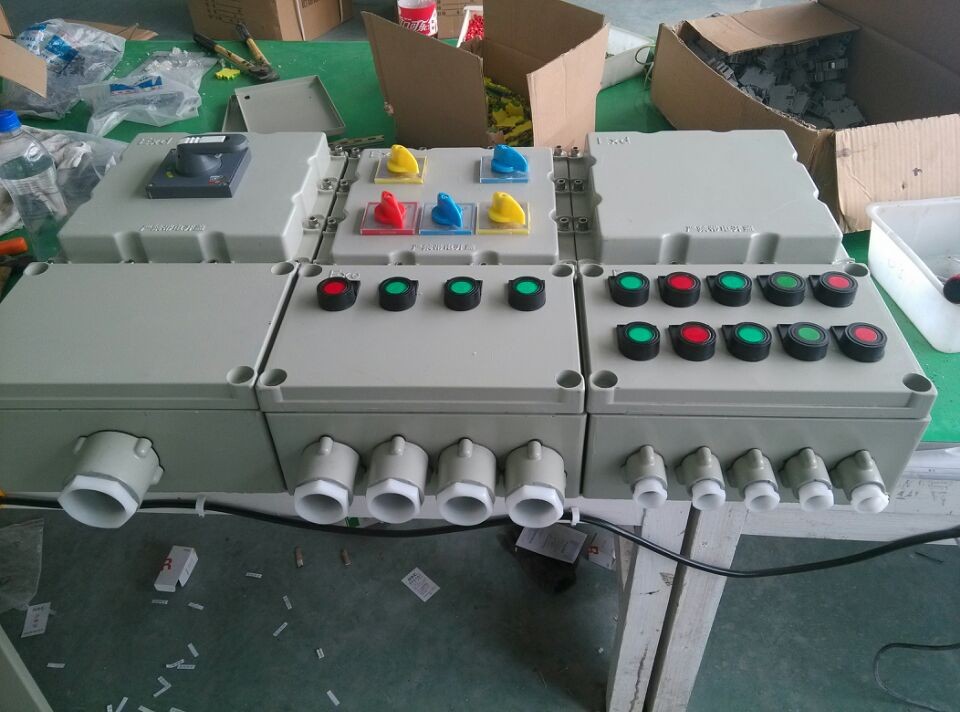

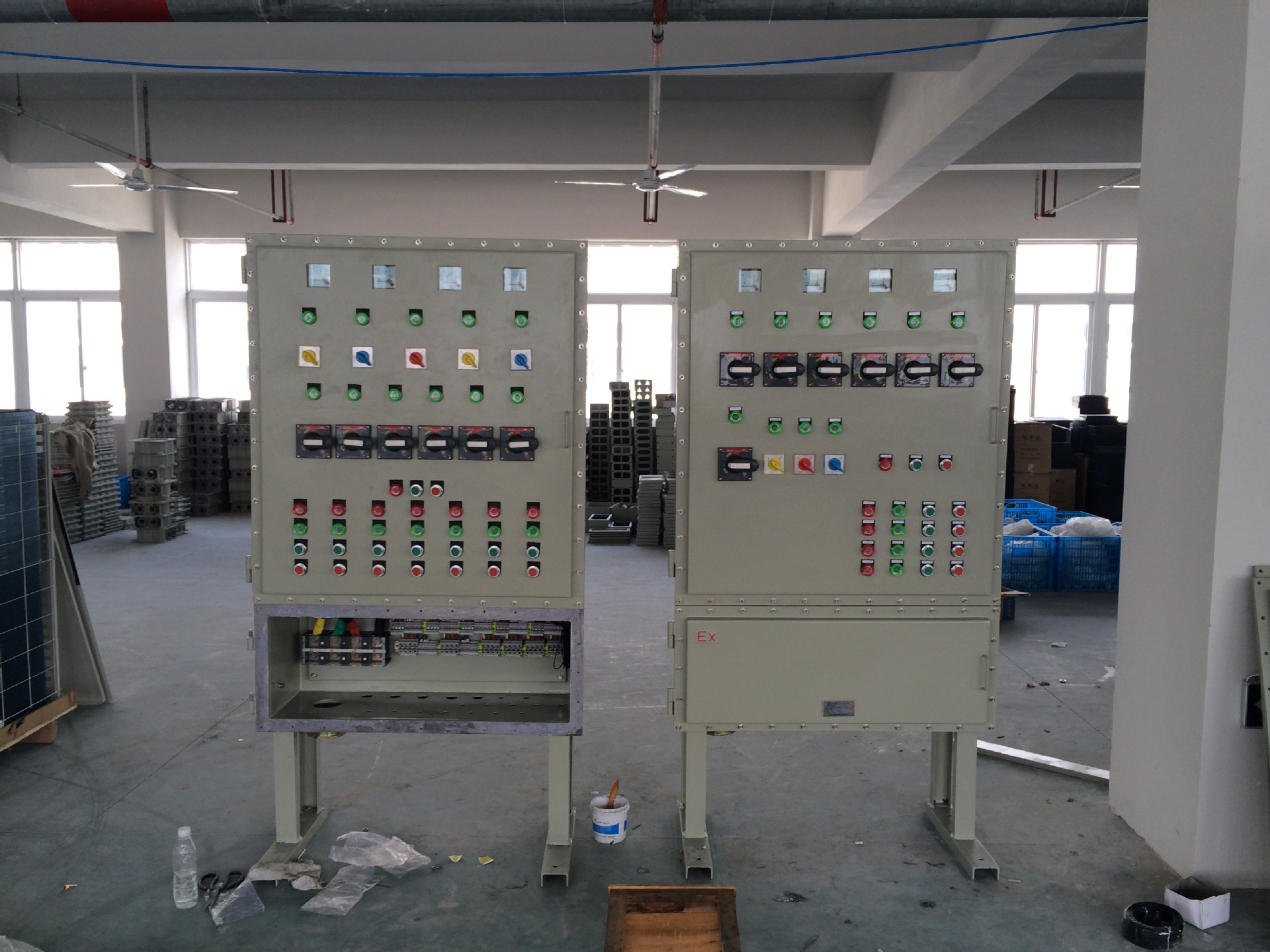

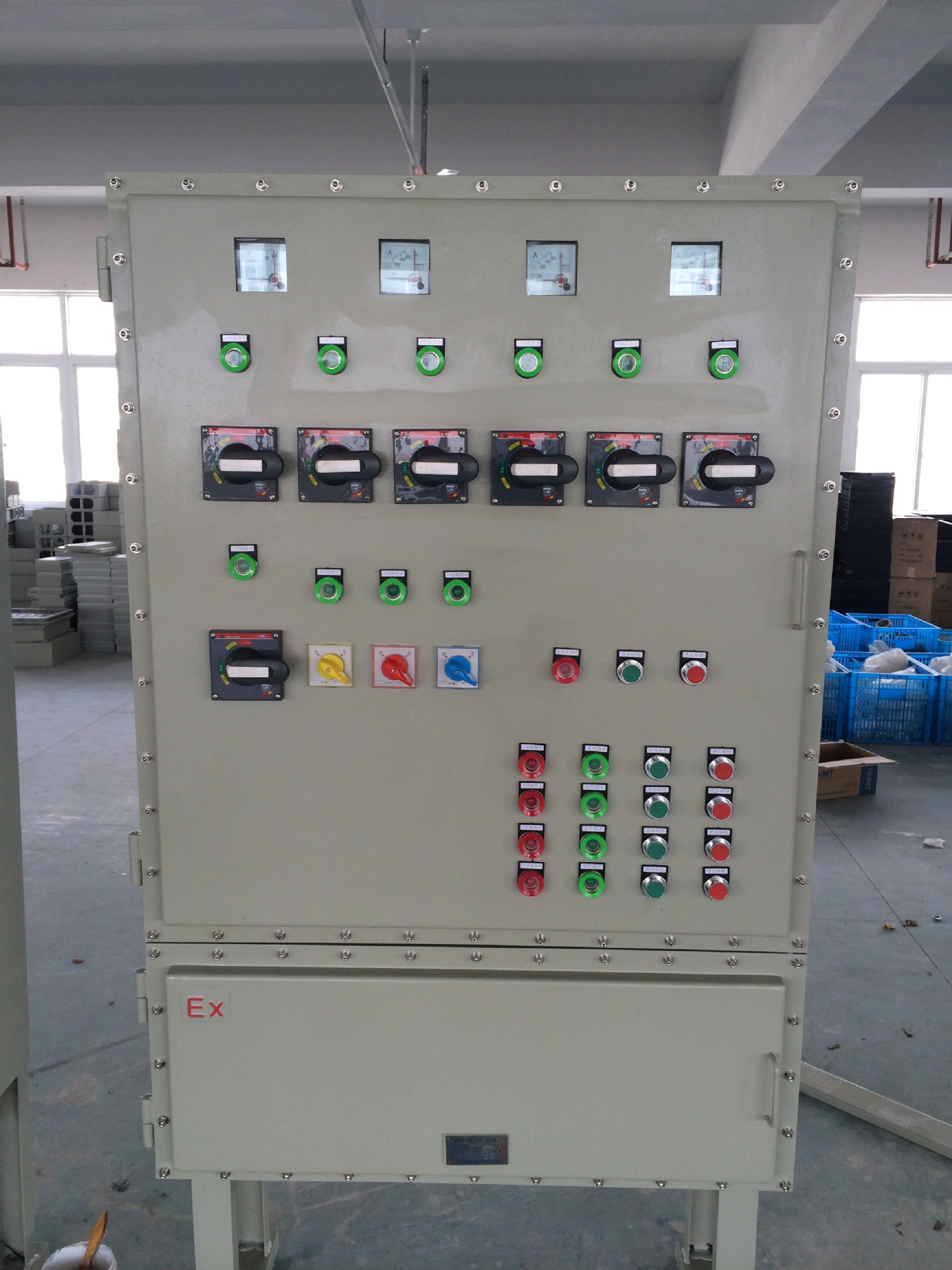

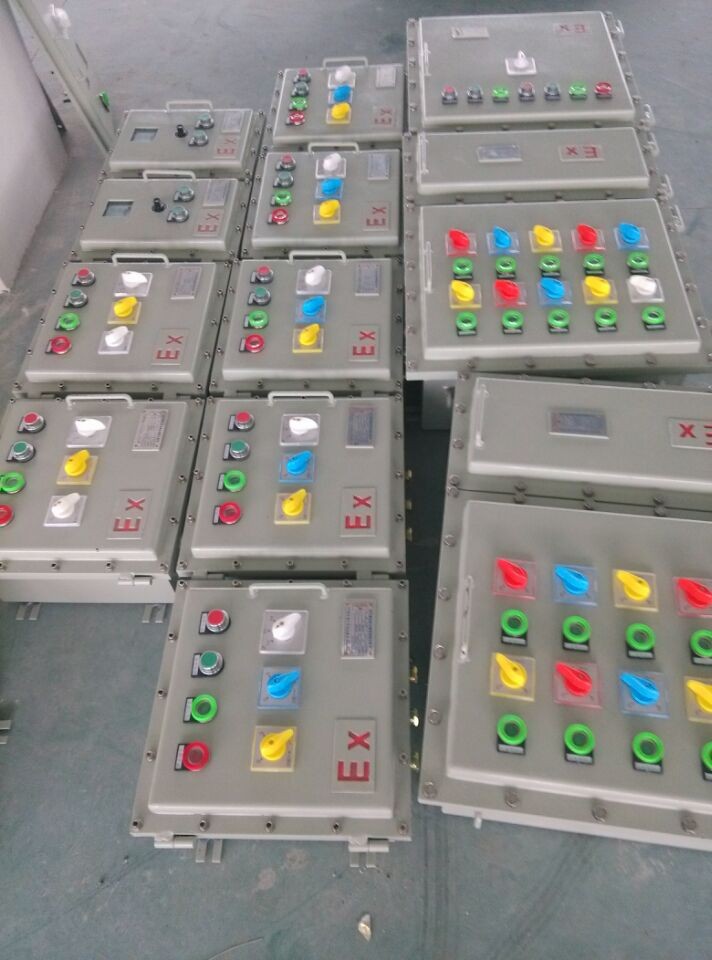

產品圖片

適用范圍

1、1區、2區危險場所；

1, 1 division, 2 division dangerous places;

2、ⅡA、ⅡB、IIC類爆炸性氣體環境。

2,  ⅡA,ⅡB、IICclass explosive gases.

產品特點

1、外殼采用ZL102鋁合金壓鑄或鋼板焊接成型，表面高壓靜電噴塑，不銹鋼外露緊固件；

1, shell of ZL102 aluminum alloy with die casting or steel welding forming, electric static spraying the surface high pressure, stainless steel fasteners exposed;

2、本產品為復合型，開關箱采用隔爆型結構，母線箱及出線箱采用增安型結構；

2, this product is a complex, switch box adopts flameproof structure, mother and out the kit is included as standard kit is included as standard is the structure of increasing Ann;

3、內裝高分?jǐn)嘈⌒蛿嗦菲骰蛩軞な綌嗦菲?。有DZ47、C65、CM1可供選擇；

3, with high marks in broken small circuit breaker or molded case circuit breaker type. Have DZ47, C65, CM1 to choose from;

4、具有過載短路保護功能，可根據要求增加漏電保護等功能；

4, has overload short circuit protection function, can according to ask for an increase in the leakage protection function;

5、鋼管或電纜布線均可；

5, steel pipe or cable wiring;

6、符合GB3836-2000，IEC60079標準要求。

6, accord with GB3836-2000, IEC60079 standard requirements.

主要技術參數

1、防爆標志：ExdeⅡBT6

1, explosion-proof sign: ExdeⅡBT6

2、防護等級：IP55

2, the protective level: IP55

3、防腐等級：WF1

3, the anti-corrosion class: WF1

4、結構:模塊化拼裝或鋼板焊接

4, structure: modular assembly or steel welding

5、安裝形式：掛式

5, installation forms: hanging

6、額定電壓：AC220V/380V

6, rated voltage: AC220V / 380 V

7、總開關zui大電流：250A

7, total switch maximum current: 250 A

8、支回路zui大電流：63A

8, A loop maximum current: 63 A

9、進線口螺紋：G1"～G3"

9, the inlet thread: G1 "~ G3"

10、出線口螺紋：G1/2"～G1 1/2"

10, outlet thread: G1/2 "~ the G1 1/2"

11、進線口電纜外徑：Φ12mm～Φ56mm

11, the inlet cable diameter: Φ 12 mm ~ Φ 56 mm

12、出線口電纜外徑：Φ8mm～Φ26mm

12, outlet cable diameter: Φ 8 mm ~ Φ 26 mm
